> Heavy duty fabric conveyor belt

General conveyor belt

Product description: The general fabric conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendering, firming and vulcanizing, etc.
Inquiry

Product introduction

Product features:

· The general fabric conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendering, firming and vulcanizing, etc.

· It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged.

· We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

Standards	Cover Rubber			Adhesion
Standards	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
DIN 22102	Mpa	%	mm³	N/mm (≤1.5mm)	N/mm (>1.5mm)	N/mm
DIN 22102-Z	15	350	250	3.5	4.5	5
DIN 22102-W	18	40	90	3.5	4.5	5
DIN 22102-Y	20	400	150	3.5	4.5	5
DIN 22102-X	25	450	120	3.5	4.5	5

Standards	Cover Rubber			Adhesion
Standards	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
AS 1332	Mpa	%	mm³	N/mm (≤1.9mm)	N/mm (>1.9mm)	Nmm
AS 1332-N17	17	400	200	4	4.8	6
AS 1332-M24	24	450	125	4	4.8	6

Standards	Cover Rubber			Adhesion
Standards	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
RMA	Mpa	%	mm³	N/mm (≤1.6mm)	N/mm (>1.6mm)	N/mm
RMA-I	17	400		3	4.4	4
RMA-II	14	400		3	4.4	4

Standards	Cover Rubber			Adhesion
Standards	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
SANS 1173	Mpa	%	mm³	N/mm		N/mm
A	18	400	70	5		7
C	20	400	150	5		7
M	25	450	120	5		7
N	17	400	150	5		7

Polyester conveyor belt:

· Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and polyamide in weft.

· The belt has the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength, suitable for medium, long distance and heavy-load transportation of materials.

· Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.

Specification Availability:

Carcass	Fabric structure		Type	No. of plies	Cover thickness (mm)		Belt width (mm)
	Warp	Weft			Top	Bottom
EP	Polyester	Nylon-66	EP80	2-6	3.0-18.0	1.5-10.0	300-5000
			EP100
			EP125
			EP150
			EP200
			EP250
			EP300
			EP350
			EP400
			EP500

Nylon Conveyor Belt:

· Nylon is one of the best quality synthetic fibers the rubber industry uses nowadays.

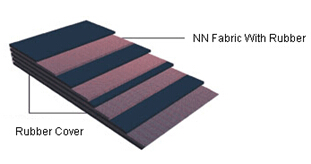

· The nylon canvas is woven by nylon fabric both in warp and in weft.

· It is the most widely used fabric in rubber industry, and its outstanding merits are its high abrasion resistance, high tensile strength and good fatigue resistance.

· Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.

· Nylon conveyor belts are suitable for medium, long distance and heavy-load transportation of materials, widely used in mining, metallurgical industry and architectural industry, ports.

Specification Availability:

Carcass	Fabric structure		Type	No. of plies	Cover thickness (mm)		Belt width (mm)
	Warp	Weft			Top	Bottom
NN	Nylon-66	Nylon-66	NN80	2-6	3.0-18.0	1.5-10.0	300-5000
			NN100
			NN125
			NN150
			NN200
			NN250
			NN300
			NN350
			NN400
			NN500

Cotton Conveyor Belt:

· Cotton canvas is woven by cotton fibers both in warp and in weft, its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.

· Cotton conveyor belt has relatively small deformation under high temperature condition,suitable for short-distance and light-load transportation of materials.

· Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt,and its tension resistant body is woven by polyester cotton fibers in warp and cotton ribers in weft.

· Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and thus the belt lighter, the belt can reduce energy and material consumpt
