> Chevron conveyor belt

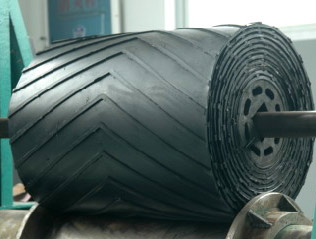

Chevron conveyor belt
- Product description: Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Product introduction
Application:
· Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
1 Anti-slip;
2 Cleats and top cover rubber are vulcanized integrally;
3 Cleat pattern, angle and pitch are designed elaborately.
Selections:
Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination:
|
Type of material |
Material example |
Max. angle of inclination |
|||
|
Height of cleats |
|||||
|
H(mm): |
H(mm): |
H(mm): |
H(mm): |
||
|
Powdery |
Flour, etc. |
25° |
25° |
28° |
30° |
|
Loose flowing |
Corn, barley, wheat, rye, etc. |
20/25° |
20/25° |
25/30° |
25/30° |
|
Loose rolling |
Gravel, ground stone, etc. |
25° |
25° |
28° |
30° |
|
Sticky |
Wet sand, ash, wet loam, etc. |
30° |
30/35° |
35/40° |
40/45° |
|
Packed |
Sacks, paper sacks, etc. |
30/35° |
30/35° |
35/40° |
35/40° |
Cleat pattern ranges

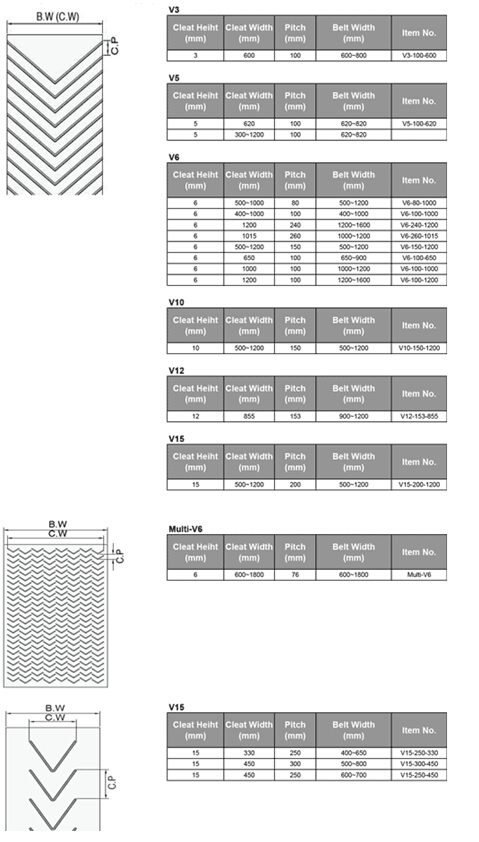

1. Conveyor belts with Close V type profiles

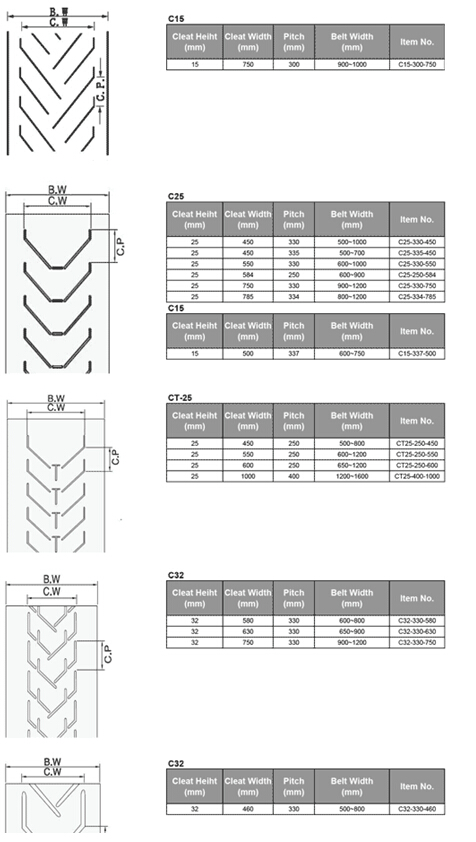

2.Conveyor belts with C type profiles

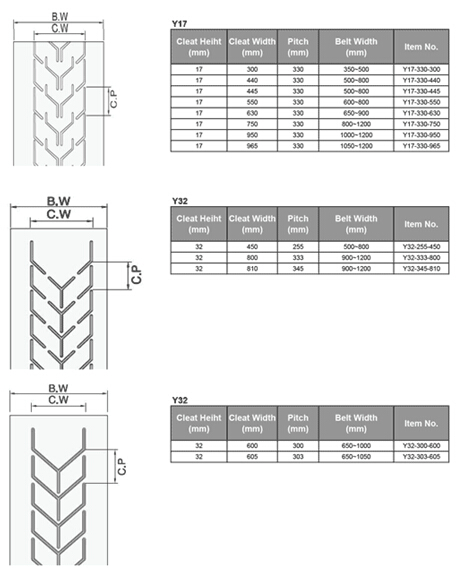

3.Conveyor belts with Y type profiles

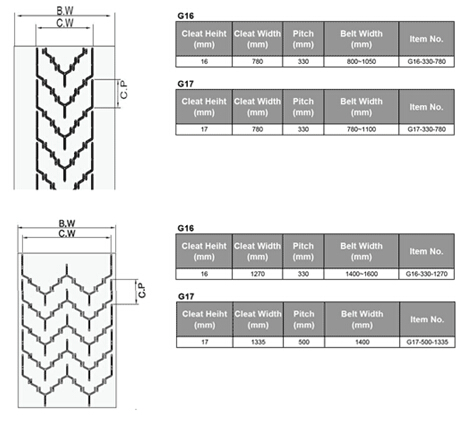

4.Conveyor belts with G type profiles
